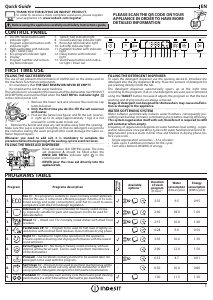

ENQuick Guide

1

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on

the machine’s functional components.

• It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.

• It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher (see PRODUCT

DESCRIPTION) and must be lled when the SALT REFILL indicator light

in the control panel is lit.

1. Remove the lower rack and unscrew the reservoir cap

(anticlockwise).

2. Only the rst time you do this: ll the salt reservoir

with water.

3. Position the funnel (see gure) and ll the salt reservo-

ir right up to its edge (approximately 1 kg); it is not

unusual for a little water to leak out.

4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into

the container during the wash program (this could damage the water so-

ftener beyond repair).

Whenever you need to add salt, it is mandatory to complete the

procedure before the beginning of the washing cycle to avoid corrosion.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse

aid dispenser A should be lled when the

RINSE AID REFILL indicator light

in the

control panel is lit.

NEVER pour the rinse aid directly into the

appliance tub.

A

C

D

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the

detergent into the dry dispenser D only. Place the amount of detergent for

pre-washing directly inside the tub.

The detergent dispenser automatically opens up at the right time

according to the program. If all-in-one detergents are used, we recommend

using the TABLET button, because it adjusts the program so that the best

washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunc-

tion or damage to the appliance.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently

pre-

venting scale buildup on heater, contributing also to better cleaning

eciency.

This system regenerates itself with salt, therefore it is required to rell

salt container when empty.

Frequency of regeneration depends on water hardness level setting - regen-

eration takes place once per 6 Eco cycles with water hardness level set to 3.

Regeneration process starts in nal rinse and nishes in drying phase, be-

fore cycle ends.

• Single regeneration consumes: ~3.5L of water;

• Takes up to 5 additional minutes for the cycle;

• Consumes below 0.005kWh of energy.

CONTROL PANEL

FIRST TIME USE

Before using the appliance carefully read Safety Instructions guide.

PROGRAMS TABLE

PLEASE SCAN THE QR CODE ON YOUR

APPLIANCE IN ORDER TO HAVE MORE

DETAILED INFORMATION

1. On-O / Reset button with

indicator light

2. Program selection button with

indicator light

3. Half Load button with indicator

light / Tablet (Tab)

4. Eco program indicator light

5. Display

6. Program number and remain-

ing time indicator

7. Tablet (Tab) indicator light

8. Closed water tap indicator light

9. Rinse Aid rell indicator light

10. Salt rell indicator light

11. Push&GO button with indicator

light

12. Delay button with indicator

light

13. Start/Pause button with indica-

tor light / Drain out

4

1

3

2

965 7 8 1210 11 13

Program Programs description

Drying

phase

Available

options

*)

Duration

of wash

program

(h:min)

**)

Water

consumption

(litres/cycle)

Energy

consumption

(kWh/cycle)

1.

Eco 50°- Eco program is suitable to clean normally soiled tableware,

that for this use, it is the most ecient program in terms of its com-

bined energy and water consumption, and that it is used to assess

compliance with the EU Ecodesign legislation.

3:35 9.5 0.95

2.

Intensive 65° - Program recommended for heavily soiled crocke-

ry, especially suitable for pans and saucepans (not to be used for

delicate items).

2:40 18.0 1.60

3.

Mixed 55° - Mixed soil. For normally soiled dishes with dried food

residues.

2:15 16.0 1.40

4.

Fast&Clean 28’

50° -

Program to be used for half load of lightly-so-

iled dishes with no dried food residues. Does not have drying phase.

-

0:28 9.0 0.50

5.

Night

50°

- Suitable for night-time operation of the appliance.

Ensures optimal cleaning and drying performance with the lowest

noise emission.

3:35 16.6 1.30

6.

Extra Hygiene 65°- Normally or heavily soiled crockery, with ad-

ditional antibacterial wash. Can be used to perform maintenance

of the dishwasher.

2:00 12.0 1.50

7.

Prewash - Use to refresh crockery planned to be washed later. No

detergent to be used with this program.

-

0:12 4.7 0.01

8.

Self Clean 65°- Program to be used to perform maintenance of the

dishwasher, to be carried out only when the dishwasher is EMPTY

using specic detergents designed for dishwasher maintenance.

-

0:50 10.0 0.80

9.

Push&GO

50° -

Everyday wash and dry cycle that ensures great cleaning

performance in a short time without the need to pre-treat dishes.

1:30 11.5 1.30

THANK YOU FOR BUYING AN INDESIT PRODUCT.

In order to receive a more complete assistance, please register

your appliance on: www.indesit.com/register
